Szemléltető kép
Termék adatlap
EAN kód8595568941152
Vámtarifaszám40082900
Súly1,0600 kg/pcs
Anyagrubber
UV-stabil/UV-stabil alapanyagigen
Szélesség250 mm
Magasság50 mm
Mélység100 mm

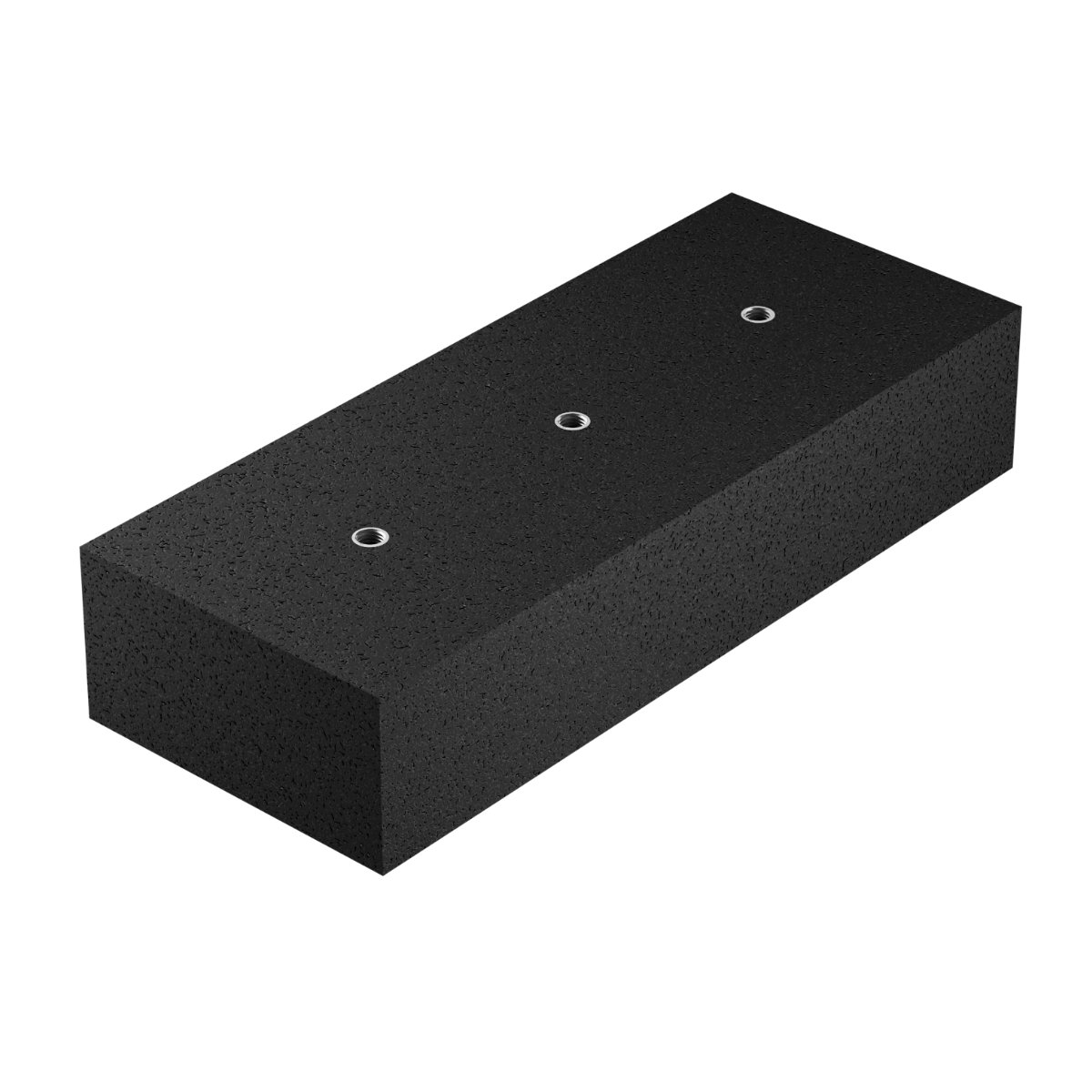

The washers are designed to support cable trays on flat roofs. The washer is made of a rubber material that is UV resistant. On the underside of the pad there is an aluminium foil with an anti-slip treatment, which acts as an insulating layer for direct contact with roofs made of PVC material. The PPS 3XM8_GMLZ washer has 3 M 8 nuts pressed in. The cable tray is attached to the washer with an S 8X20 screw. The wire cable tray is attached to the base using the DZCZ central hanger and the S 8X20 screw. The washer can also be used as a foot for attaching other support structures e.g. mounting profiles, ceiling profiles etc.
